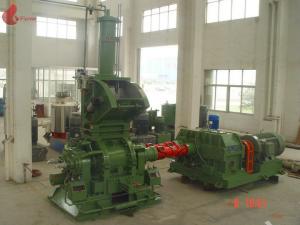

Cast steel Chrome plated Internal Mixer For PVC filme , plastic mixer

Brand Name : FLAME
Model Number : 100L
Certification : ISO9001:2000
Place of Origin : CHINA
MOQ : 1 set
Price : USD 100,000-110,000/set
Payment Terms : T/T
Supply Ability : 5 sets/60 days
Delivery Time : 60 working days
Packaging Details : Standard Export Packing
Electrical control : PLC
Mixing Chamber material : cast steel
Output : 800-1000kg/h
rotor material : Alloy Hardfacing Electrodes
Contact Now

1000kg/h Rotor chrome plated 100L Internal Mixer Machine For PVC filme

1. Introduction
Name:Plastic Mixer Type:Falling Or Internal
Material: Cast Steel Capacity:120-150 Kg/batch
Heating Way: Oil Or Steam Connect Way: cardan
Rotors:Chrome Plated and Alloy Hardfacing Electrodes
Feature: It is mainly used for plasticating, mixing and final mixing the stock

2. Description:
1. Technical parameter

Rotary speed of front roll40r/min
Rotary speed of back roll34r/min
Motor powerAC 220kw/380W/50Hz
Capacity8~10 batches/hour, 130~150kg/batch
Pressed air3.5m/min

Drop discharging type;
Oil heating or steam heating type;





2. Main character

1. Mixing volume of mixing cabinet ………100L…

2 .Main motor power: 220KW, 8P, AC, Siemens brand

3. Rear rotor speed: 42 rpm

4. Ratio of front and rear rotor speed: 1:1.15

5 .Discharge type: downward

6 .Colling type: water

7. rotor shaft: biserial self-aligning roller shaft

8 .Electrical control: controlled by PLC, brand of Mitsubishi.

9. the decelerator with hard-facing gear makes it's transmission steady, least noisy and everlasting.

10. Rotor: edges and corners are wearable, welded by welding rod

11. discharge door can be openned when poweroff

12. Contactor: LG brand

13. Equipped with the banbury mixer: hydraulic station,libritorium,DOP oiling device,Electric control cabinet,operating console


3. Applications:

  1. PVC Artificial Leather;
  2. PVC film
  3. PVC plastic floor
  4. PVC plastic sheet
  5. Plastic mixer
  6. Rubber mixer



4. Equipment list

1. main body1 group
2. press hammer and cylinder1 group
3. material feeding device1 group
4. discharge device1 group
5. transmission device1 group
6. electric control device1 group
7. oil pressure and lubricate device1 group
8. tubing1 group



5. Main Technical Parameter:

Project Model

Working capacity of mixing chamber (L)

Rotating speed of rear rotor (r/min)

Main motor power (kw)

Weight (t)

S-75L

75

1:1.17

160

22

S-100L

100

1:1.17

220

24

S-120L

120

1:1.17

300

28

S-160L

160

1:1.17

400

32


6. Competitive Advantage:

  • PLC control system
  • Lower noise, safer mixer
  • Excellent dispersing effect
  • Best mixing chamber to get 100% mixing effect.
  • Fast Mixing, good effectivity
  • Easier Maintenance.
  • Long life.
  • No leakage.


7. Service:
1. Oversea installation guide.
2. Oversea test running
3. Oversea worker training
4. Technical support
5. Supply of spare parts
6. Technical operation support
7. Formula and processing support

8. Option
Two rotor mixer, the relative rotation, the material from the feed mouth clamp into the roll gap by rotor extruding and shearing, after through the roll gap above the top tied pien is divided into two parts, respectively along the chamber wall and the gap between the rotor before and after the return to roll gap above.In a week around the rotor flow, material is influenced by the shear and friction action, make rubber temperature rise sharply, lower viscosity, increased the wettability on the surface of the rubber in the compound, make good contact with rubber and compound surface.

9. Commercial Terms
1. Delivery period: totally 6 months after the contact is confirmed.
2. Payment: 30% of the total amount by T/T in advance as down payment, 70% of total amount by T/T before shipment.
3. Spare parts: The seller will provide a set of valueless vulnerable parts for free. The seller also suggests the buyer to buy a set of spare parts which meets one year’s use again. The seller will show the list of spare parts to the buyer for his choose before delivery.
4. Appearance and color: appearance and color of the machines are based on the seller’s standard. Of course, we can also custom-made according to buyer’s request.
5. Electric power: The quotation above is based on 380V/50Hz. There will be some additional fee and extended producing time for custom-built electric power requirement.
6. Warranty period:
6-1. Machines: one year after successful debugging;
6-2. Electrical components: 6 months after successful debugging.
7. Debugging service and cost borne by Foreign:
7-1. The seller will send three or four technical workers (or more as buyer’s request) to the place which appointed by the buyer for the guidance of equipment installation and the debugging service;
7-2. Both buyer and seller should bear their corresponding charge as below:
7-2-1. The seller is in charge of the fee cost in China but except for the visa charge;
7-2-2. The buyer is in charge of the fee cost in Foreign and the visa charge. This fee includes but not limited to the followings:
a. Round-trip ticket;
b. Transportation, meals, accommodation and communication fee during business trip;
c. Allowance (manpower fee) USD 80.00 for per person a day (days calculation: total days from the day on the business trip to returning to China);
d. Translator: The buyer should hire a translator for the seller's technical workers convenient field work communication, and for completing the task successfully. Otherwise the seller will send an additional translator. The buyer should be in charge of this cost (refer to a~d).
