1. Introduction of Product
Teflon EMDP SIEMENS CPU SY-6Γ￠450x1350mm Six-Roll Calender Production Line (PVC Sheet)
Application: | Rigid Pvc | Feature: | Light Weight, High Tenacity |
Product Name: | PVC Calender Machine | Roller Number: | six Roll |
Driving Motor: | Variable-frequency Motor | Roller Material: | 1#, 2#, 3#, 4#, 5#,6# |
2. Quick Detail:

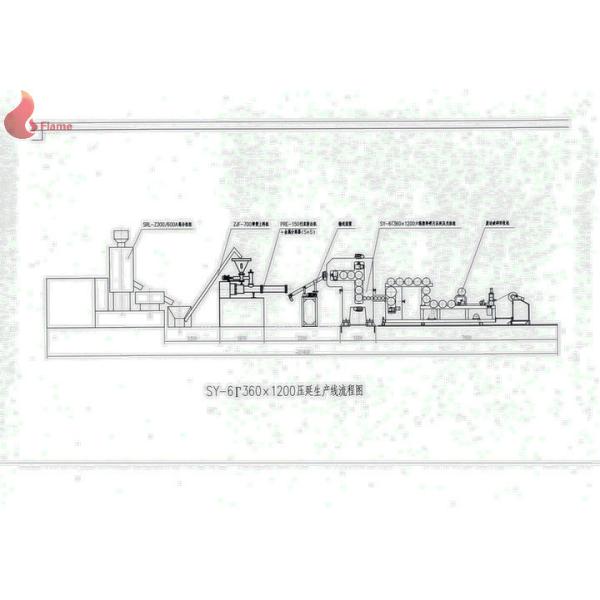

This Calendar line is able to produce a wide range of PVC film and sheet products for different applications. The line is composed of φ450×1350mm roller “Γ” type 6-roll Calendar, 150 planetary extruder, and together with up-stream and down-stream auxiliary equipment.
3. Description:
Project | Equipment Name | Quantity |
1 | SRL-Z500/1000A mixer unit | 1set |
2 | ZJF-700 spring conveyor | 1set |
3 | S4910-1 vibrating screen | 1set |
4 | PRE-190 planetary extruder | 1set |
5 | SK-￠450x1200mm Two Rolls Mixing Mill | 1set |
6 | Transporter (swing type) | 1set |
7 | ZD Series screw loader | 1 set |
8 | SY-6ΓФ450x1350mm Six-roll calender,auxiliary machine,rolling,temperature control,full set electric appliance | 1set |
4. Applications:
Fix(Six) Roll Calender is Applicated in producing high grade rigid transparent PVC sheet, colorful PVC
sheet, flexible PVC sheet,such as food package,medicine package and other uptake plastic container.
5. Specifications:
| | SY-5L
950 | SY-5Г
1050 | SY-6Г
1200 | SY-5Г
1300 | SY-5Г1500 | SY-5Г1600 | SY-5Г1800 |
| Roller size | Ø320×
950mm | Ø400×
1050mm | Ø400×
1200mm | Ø450×
1300mm | Ø510×
1500mm | Ø560×
1600mm | Ø610×
1800mm |
| Arrangement patterm | L types | Г types | Г types | Г types | Г types | Г types | Г types |
| Calendering speed | 5-25m/min | 6-30m/min | 6-30m/min | 7-35m/min | 8-40m/min | 8-45m/min | 10-50m/min |
| Roller quantity | 5 | 5 | 6 | 5 | 5 | 5 | 5 |
| Tinckness of Calender product | 0.1-06mm | 0.06-
1.0mm | 0.2-1.2mm | 0.08-1.0mm | 0.08-1.0mm | 0.08-1.0mm | 0.08-1.0mm |
| Largest with of Calender product | 450-
770mm | 610-
820mm | 610-
950mm | 610-
1050mm | 720-1250mm | 720-1350mm | 800-1500mm |
| Driving power | 45kw | 115kw | 136kw | 170kw | 235kw | 290kw | 380kw |
| Heating power | 90kw | 210kw | 240kw | 265kw | 315kw | 385kw | 456kw |
| Capacity | 250kg/h | 450kg/h | 500kg/h | 650kg/h | 800kg/h | 1000kg/h | 1500kg/h |
6. Competitive Advantage:
a. The rollers are drilled roll with hot-grinded, single motor single transmission with a stable and adjustment speed work. The machine use roller bearing which can bear high temperature. Sealing type is labyrinth.
b. The film can infinite extend, with a high work speed, high produce capacity, good quality and uniform thickness.
c. The main machine has roll crossing, preloading and anti-bending device, the nip adjustment speed can be adjusted, the electric parts has PLC control.
7. Service:
1. Oversea installation guide.
2. Oversea test running
3. Ovsersea worker training
4. Technical support
5. Spare parts supply
6. Technical operation support
7. Formula and processing support
8. Option
This sysytem is composed of five-rollers calender, multiple-roller lead device and auxiliary cooling machine
9. Commercial terms
1. Payment: 30% by T/T as advance payment, balance(70%) by T/T before shipment
2. Lead Time: 120 days after receiving the advance payment
3. Transportation: container, simple package ( PE film, salver)
4.Warranty period: From the day of the use of the machine in the buyer’s factory:
(1) The mechanical Parts: 12 months
(2) The electrical Parts: 6 months
5. Installations and Commissioning
(1) Up to date commissioning has been made before shipment
(2) Overseas Commissioning and charges one or two technicians will be sent to the buyer to guide the
installation and commissioning of the equipment if the customer requests.
Customers pay the charge of our technicians.
(1) Round-trip Airplane Ticket
(2) Charges of transportation, accommodation and communication
(3) The allowance for the technicians is USD 80 per day for one person.
(4) An interpreter is needed.
6. Spare parts:
Spare parts for one year are needed for the customers, and we suggest that customers should buy the spare parts. (Fittings list will be provided.)
7. English manual, Figuration drawing, and footing drawings are provided.
